NEW FOR 2020! (Available in 8AN ORB only at this time)

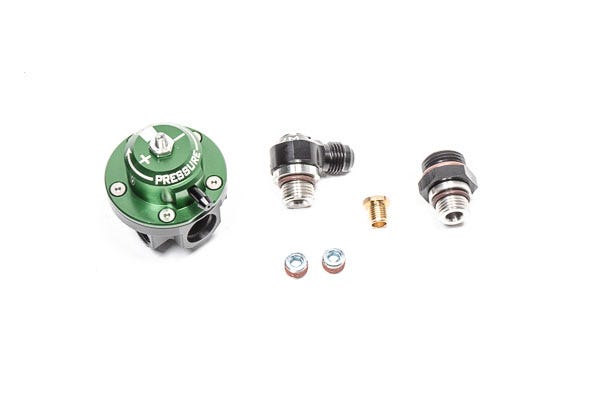

The Radium Direct Mount Regulator (DMR) is a compact high performance adjustable EFI fuel pressure regulator designed with a unique highly versatile mounting system. It can be mounted directly to a compatible fuel rail port using the included 360 degree swiveling adapter, or mounted remotely away from the fuel rail. The compact size fits in areas with limited space, without sacrificing performance. This regulator is safe to use with E85 and other alternative fuels.
PORTS AND FITTINGS
The main inlet port on the regulator is female threaded for 6AN ORB. A swiveling double ended adapter is included with the kit that allows the regulator to be used in any compatible 8AN ORB fuel rail port, such as those found Radium Engineering fuel rails. Other swivel adapters will be made available in the future. If mounting the regulator off-rail, other adapters can be screwed into this port on the regulator.
The return port on the bottom is threaded for 6AN ORB. The pro
