What makes Radium FPDs unique?
Along with having the flexibilty of using common fittings, Radium Engineering FPD's use a vacuum/boost reference port which allows for proper fuel pulse damper performance even at elevated fuel pressures. This becomes essential for boosted systems that use a 1:1 rising rate fuel pressure regulator.

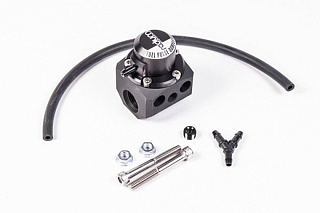

What is the difference between FPD-R and FPD-XR?
The FPD-R (green top) is slightly shorter than the FPD-XR (black top) allowing it to be used in space-contrained applications.
FPD-R base pressure requirement = 40 - 70psi (static)
Male fitting seals using a FKM O-ring.
Even after tightened the newest 8AN ORB dampers (20-0776 and 20-0777), will swivel permiting the vacuum port to be clocked 360 degrees.
This product is safe for use with all fuel types including alcohol blends such as E85.

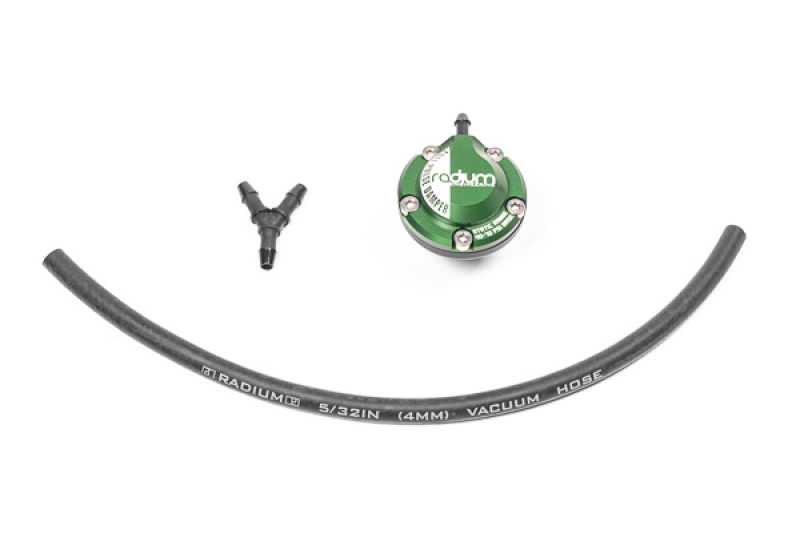

Anodized and laser engraved aluminum top, R=range
Anodized aluminum body with male threads, 8AN ORB
Stainless steel hardware
Rubber vacuum hose, 4mm ID
Vacuum hose Y-fitting
