- Артикул:
50-1200
- Производитель:
AEM
AEM High Flow In-Tank Fuel Pump Features:
Tested and compatible with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline
Designed for high output naturally aspirated and forced induction EFI vehicles
In tank design
Each pump is tested to flow 340 lph @ 43 PSI
39mm diameter fits most applications
Offset inlet design eases installation

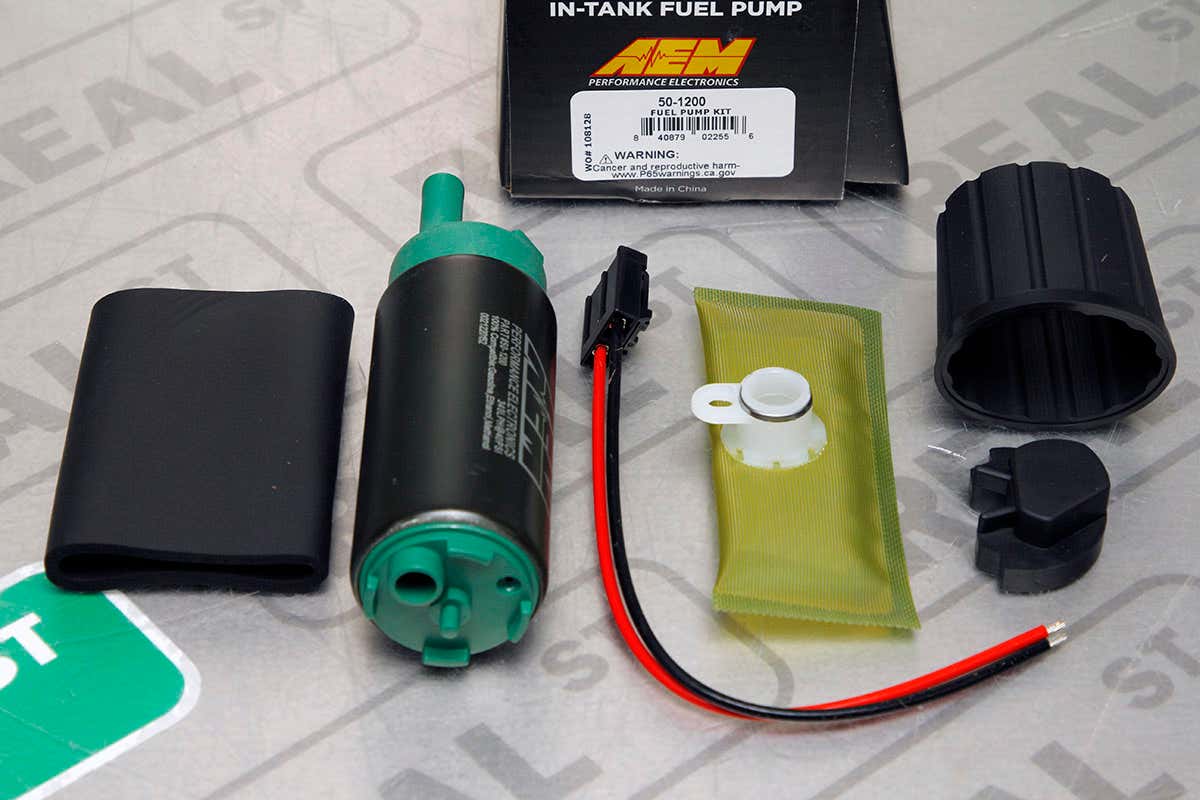

Kit includes fuel pump, rubber sleeve and end caps, pre filter, hose, clamps and flying lead
TECHNICAL SPECS:
Weight: 10.1oz (285grams)
Outside Diameter: 39mm OD
External Materials: Black plated steel with laser etching, green end caps
Inlet Fitting: 7.7mm ID, 11.0mm OD
Outlet Fitting: 8 mm hose clamp
PRV Activation: 90 PSI
Impeller Design: Single Scroll Ceramic Turbine
VOLTAGE SPECS:
Connector Terminal: 6 mm Spade (pos/neg)
Min Voltage Input: 6 volts
Max Voltage Input: 18 volts
Current Draw (40 psi): 12 amps (13.5v)
Current Draw (80 psi): 15 amps (13.5v)
* Power rating given at 43 PSI, 13.5v at the pump with a BSFC of .5.
